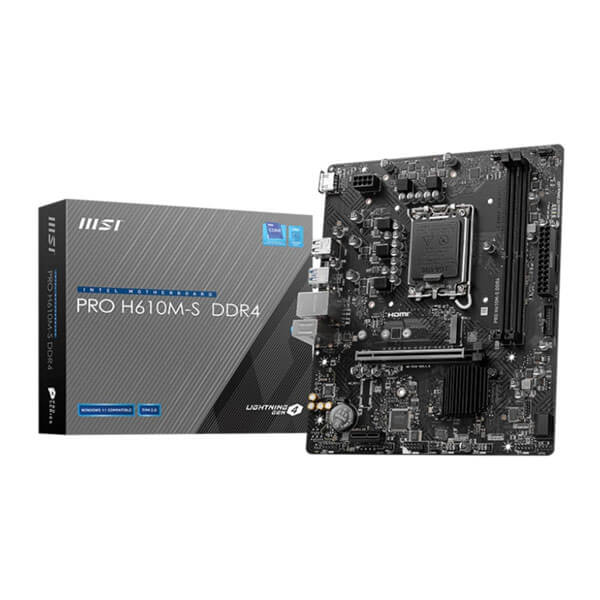

Features: | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket | Supports DDR4 Memory, up to 3200(MAX) MHz | Core Boost : | With premium layout and digital power design to support more cores and provide better performance | Memory Boost: | Advanced technology to deliver pure data signals for the best performance, stability and compatibility | Lightning Fast Experience: PCIe 4.0 | Audio Boost: | Reward your ears with studio grade sound quality | Steel Armor: | Protecting VGA cards against bending and EMI for better performance, stability and strength. | Specifications: | Model | PRO H610M-S DDR4 | Chipset | INTEL H610 | CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors | LGA 1700 | Memory | 2x DDR4, Maximum Memory Capacity 64GB | Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | Supports Dual-Channel mode | Supports non-ECC, un-buffered memory | Onboard Graphics | 1x HDMI | Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed | Slot | 1x PCI-E x16 slot | 1x PCI-E x1 slot | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | Storage | 1x M.2 | M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices | 2x SATA 6G | USB | 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 2x USB 3.2 Gen1 Type A (Rear) | 2x USB 3.2 Gen1 Type A (Front) | LAN | Realtek RTL8111H Gigabit LAN | Audio | Realtek ALC897 Codec | 7.1-Channel High Definition Audio | Internal IO | 1x Power Connector(ATX_PWR) | 1x Power Connector(CPU_PWR) | 1x CPU Fan | 1x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Com Port (JCOM) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 2x USB 3.2 Gen1 Type A ports | LED FEATURE | 4x EZ Debug LED | BACK PANEL PORTS | HDMI | USB 3.2 Gen 1 5Gbps (Type-A) | USB 2.0 | LAN port | Audio Connectors | OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit | PCB Info | mATX | 200mmx236.16mm | Warranty | 3 Years | Note | *** Image use for reference only | *** Features, Price, Specifications are subject to change without notice.
