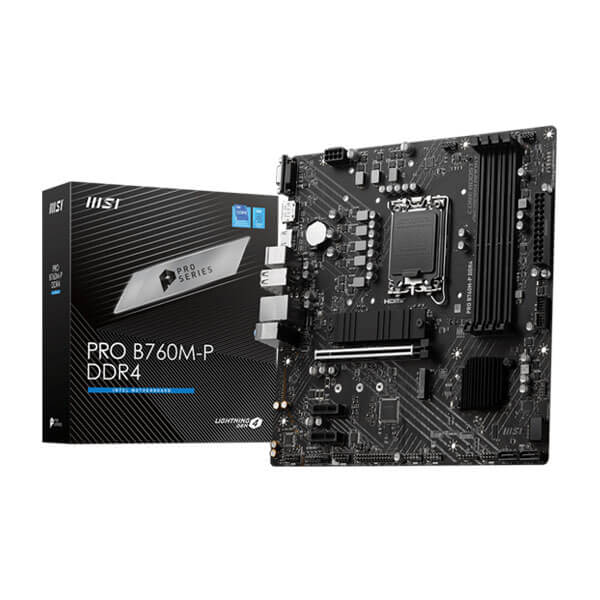

Features: | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket | Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC) | Core Boost : | With premium layout and digital power design to support more cores and provide better performance | Memory Boost: | Advanced technology to deliver pure data signals for the best performance, stability and compatibility | Lightning Fast Experience: | PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr | AUDIO BOOST: | Reward your ears with studio grade sound quality for the most immersive gaming experience | Steel Armor: | Protecting VGA cards against bending and EMI for better performance, stability and strength | Specifications: | Chipset | INTEL B760 | CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors | LGA 1700 | Memory | 4x DDR4, Maximum Memory Capacity 128GB | Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | Max. overclocking frequency: | • 1DPC 1R Max speed up to 4800+ MHz | • 1DPC 2R Max speed up to 4600+ MHz | • 2DPC 1R Max speed up to 4400+ MHz | • 2DPC 2R Max speed up to 4000+ MHz | Supports Dual-Channel mode | Supports non-ECC, un-buffered memory | Supports Intel Extreme Memory Profile (XMP) | Onboard Graphics | 1x HDMI | Support HDMI 1.4, maximum resolution of 4K 30Hz* | 1x DisplayPort | Support DP 1.4, maximum resolution of 4K 60Hz* | 1x VGA | Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | Slot | 1x PCI-E x16 slot | 2x PCI-E x1 slot | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) | Audio | Realtek ALC897 Codec | 7.1-Channel High Definition Audio | Storage | 2x M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | 4x SATA 6G | * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | USB | 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 1x USB 5Gbps Type A (Rear) | 2x USB 5Gbps Type A (Front) | 1x USB 10Gbps Type C (Rear) | LAN | Realtek RTL8111H Gigabit LAN | Internal IO | 1x Power Connector(ATX_PWR) | 1x Power Connector(CPU_PWR) | 1x CPU Fan | 2x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Printer Port (JLPT) | 1x Com Port (JCOM) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 2x USB 5Gbps Type A ports | LED FEATURE | 4x EZ Debug LED | BACK PANEL PORTS | VGA | DisplayPort | HDMI™ | Keyboard / Mouse | USB 2.0 | LAN port | Audio Connectors | USB 3.2 Gen 1 5Gbps (Type-A) | USB 3.2 Gen 2 10Gbps (Type-C) | OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit | PCB Info | mATX | 243.84mmx243.84mm | nvidia-logo | Warranty | 3 Years | Note | Features, Price, Specifications are subject to change without notice. | Images used for representation purpose only
