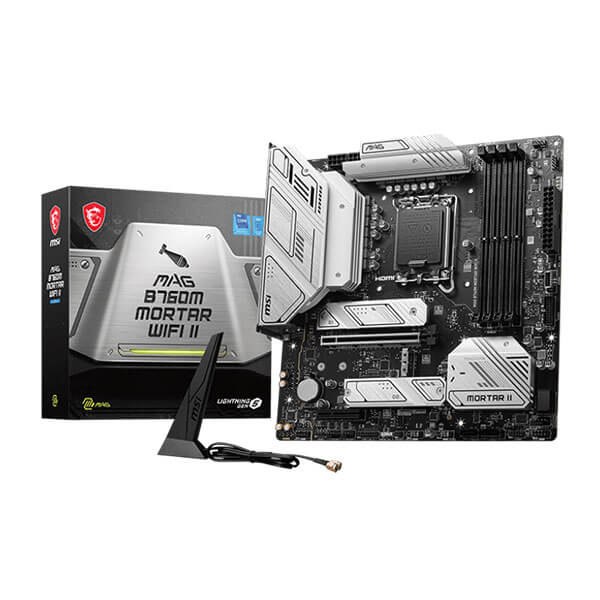

Features: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket | Supports DDR5 Memory, up to 7800+(OC) MHz | Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost | Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2 | Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works | Audio Boost: Reward your ears with studio grade sound | High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material | Specification: | Model | MAG B760M MORTAR WIFI II | Chipset | INTEL B760 | CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors | LGA1700 | Memory | 4x DDR5, Maximum Memory Capacity 192GB | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | Max. overclocking frequency: | • 1DPC 1R Max speed up to 7800+ MHz | • 1DPC 2R Max speed up to 6600+ MHz | • 2DPC 1R Max speed up to 6400+ MHz | • 2DPC 2R Max speed up to 5600+ MHz | Supports Dual-Channel mode | Supports non-ECC, un-buffered memory | Supports Intel® Extreme Memory Profile | Onboard Graphics | 1x HDMI™ | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | 1x DisplayPort | Support DP 1.4, maximum resolution of 4K 60Hz* | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | EXPANSION SLOT | 1x PCI-E x16 slot | Supports x16/x4 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | Storage | 3x M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices | 4x SATA 6G | RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | USB | 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 2x USB 3.2 Gen1 Type A (Front) | 3x USB 3.2 Gen2 Type A (Rear) | 1x USB 3.2 Gen2 Type C (Front) | 1x USB 3.2 Gen2x2 Type C (Rear) | LAN | Realtek® 2.5Gbps LAN | WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax | Supports Bluetooth® 5.3, FIPS, FISMA | * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | Audio | Realtek® ALC897 Codec | 7.1-Channel USB High Performance Audio | Supports S/PDIF output | Internal I/O | 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x CPU Fan | 1x Pump Fan | 4x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Tuning Controller connector(JDASH) | 2x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 2x USB 3.2 Gen1 Type A ports | 1x USB 3.2 Gen2 Type C ports | 1x USB4 card connector (JTBT_U4_1, supports RTD3) | LED FEATURE | 4x EZ Debug LED | BACK PANEL PORTS | DisplayPort 1.4 | USB 3.2 Gen 2 10Gbps Type-A | 2.5G LAN Port | Wi-Fi / Bluetooth | HD Audio Connectors | USB 2.0 | HDMI™ 2.1 Port | USB 3.2 Gen 2x2 20Gbps Type-C | OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | PCB Dimension (W × L) | mATX | 243.84mmx243.84mm | Warranty | 3 Years | Note | *** Features, Price, Specifications are subject to change without notice.
