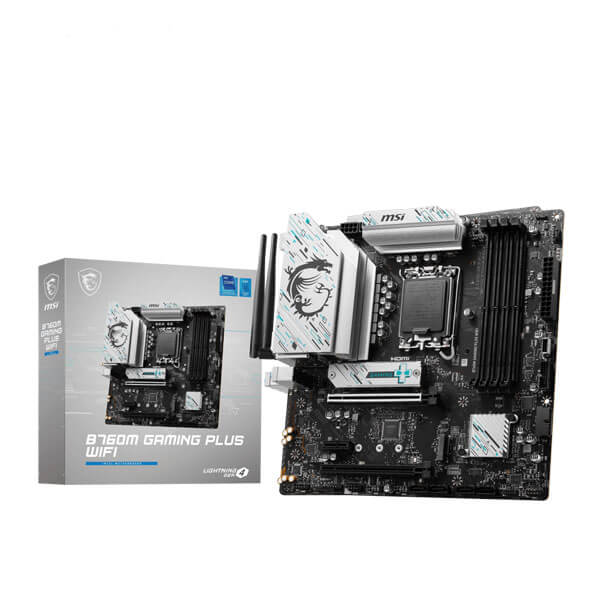

Features: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket | Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) | Enhanced Power Design | : 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost | Premium Thermal Solution | : Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience | Lightning Fast Game experience | : PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G | 2.5G LAN with Wi-Fi 6E Solution | : Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection | High Quality PCB | : 6-layer PCB made by 2oz thickened copperAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience | Specifications: | Model Number | B760M GAMING PLUS WIFI | Chipset | INTEL B760 | CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors | LGA 1700 | Memory | 4x DDR5, Maximum Memory Capacity 192GB | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | Max. overclocking frequency: | • 1DPC 1R Max speed up to 6800+ MHz | • 1DPC 2R Max speed up to 6400+ MHz | • 2DPC 1R Max speed up to 6000+ MHz | • 2DPC 2R Max speed up to 5600+ MHz | Supports Intel® XMP 3.0 OC | Supports Dual-Controller Dual-Channel mode | Supports non-ECC, un-buffered memory | Onboard Graphics | 2x HDMI™ | Support HDMI™ 2.1, maximum resolution of 4K 60Hz | 2x DisplayPort | Support DP 1.4, maximum resolution of 4K 60Hz | Slot | 2x PCI-E x16 slot | 1x PCI-E x1 slot | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | Storage | 2x M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | 4x SATA 6G | RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | USB | 2x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 2x USB 3.2 Gen1 Type A (Rear) | 4x USB 3.2 Gen1 Type A (Front) | 1x USB 3.2 Gen1 Type C (Front) | 2x USB 3.2 Gen2 Type A (Rear) | LAN | Realtek® RTL8125BG 2.5G LAN | WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax | Supports Bluetooth® 5.3, FIPS, FISMA | Audio | Realtek® ALC897 Codec | 7.1-Channel High Definition Audio | Internal IO | 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x CPU Fan | 1x Pump Fan | 2x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Com Port (JCOM) | 2x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 4x USB 3.2 Gen1 Type A ports | 1x USB 3.2 Gen1 Type C ports | LED FEATURE | 4x EZ Debug LED | BACK PANEL PORTS | Keyboard / Mouse | DisplayPort | USB 3.2 Gen 1 5Gbps (Type-A) | 2.5G LAN | Wi-Fi / Bluetooth | USB 2.0 | HDMI™ | USB 3.2 Gen 2 10Gbps (Type-A) | Audio Connectors | OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | PCB Info | mATX | 243.84mmx243.84mm | Warranty | 3 Years | Note | *** Features, Price, Specifications are subject to change without notice.
