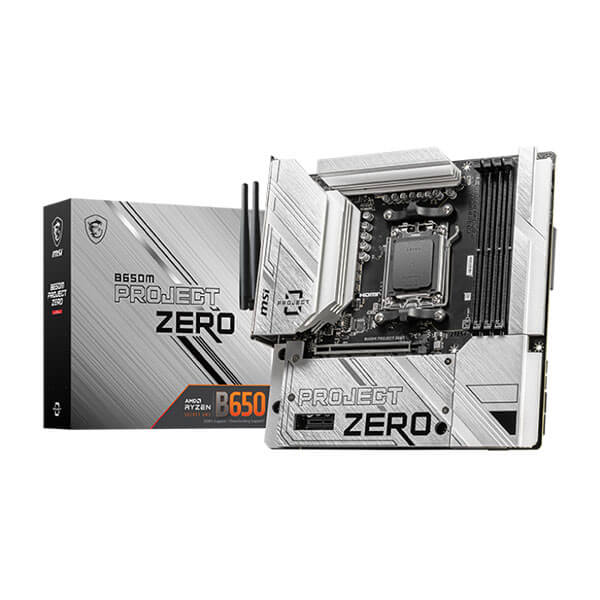

Features: | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors | Supports DDR5 Memory, up to 7600+(OC) MHz | Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works | 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection | Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs | Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 | Audio Boost: Reward your ears with studio grade sound | Specifications: | Model | B650M PROJECT ZERO | Chipset | AMD B650 | CPU | Socket AM5 | Memory | 4x DDR5, Maximum Memory Capacity 256GB | Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | Max. overclocking frequency: | • 1DPC 1R Max speed up to 7600+ MHz | • 1DPC 2R Max speed up to 6400+ MHz | • 2DPC 1R Max speed up to 6400+ MHz | • 2DPC 2R Max speed up to 5400+ MHz | Onboard Graphics | 1x HDMI™ | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz | 1x DisplayPort | Support DP 1.4, maximum resolution of 4K 60Hz | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | Slot | 1x PCI-E x16 slot | 1x PCI-E x1 slot | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | Storage | 2x M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | 4x SATA 6G | RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | * SATA_A1_A2 do not support RAID function. | USB | 2x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 2x USB 3.2 Gen1 Type A (Rear) | 2x USB 3.2 Gen1 Type A (Front) | 3x USB 3.2 Gen2 Type A (Rear) | 1x USB 3.2 Gen2 Type C (Rear) | 1x USB 3.2 Gen2 Type C (Front) | 1x USB 3.2 Gen2x2 Type C (Rear) | LAN | Realtek® RTL8125BG 2.5Gbps LAN | WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX | Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | Supports 802.11 a/ b/ g/ n/ ac/ ax | Supports Bluetooth® 5.3** | * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | Audio | Realtek® ALC897 Codec | 7.1-Channel High Definition Audio | Supports S/PDIF output | Supports up to 32-Bit/384 kHz playback on front panel | Internal IO | 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x CPU Fan | 1x Pump Fan | 3x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 3x Addressable V2 RGB LED connector (JARGB_V2) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 2x USB 3.2 Gen1 Type A ports | 1x USB 3.2 Gen2 Type C ports | LED FEATURE | 4x EZ Debug LED | BACK PANEL PORTS | DisplayPort | 2.5G LAN | USB 2.0 | USB 3.2 Gen 1 5Gbps (Type-A) | Wi-Fi / Bluetooth | Audio connectors | Flash BIOS Button | Clear CMOS Button | HDMI™ | USB 3.2 Gen 2 10Gbps (Type-A) | USB 3.2 Gen 2 10Gbps (Type-C) | USB 3.2 Gen 2x2 20Gbps (Type-C) | OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | PCB Info | mATX | 243.84mmx243.84mm | Warranty | 3 Years | Note | *** Features, Price, Specifications are subject to change without notice.
