Features:
- Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Specifications:
| CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| Chipset | AMD A520 Chipset |
| Memory |
|
| Expansion Slot |
|
| Onboard Graphics |
|
| Storage |
AMD A520 Chipset
|
| RAID |
|
| USB |
AMD A520 Chipset
AMD Processor
|
| Audio |
Realtek ALC892/ALC897 Codec
|
| LAN | 1x Realtek RTL8111H Gigabit LAN controller |
| Internal connectors |
|
| Back panel ports |
|
| Dimensions |
|
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Specifications
| 1 | All Categories |
|---|---|
| 2 | Total Savings Per Card across Mdcomputers.in platform |
| 1 | Offer Period |
| 2 | Eligible Transactions |
| 3 | Minimum transaction amount |
| 4 | Transactions allowed during the offer period |
| 5 | Applicable on EMI |
| 1 | Discount Details |
| CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| Chipset | AMD A520 Chipset |
| Memory | 2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slot | 1x PCIe 3.0 x16 slot (from AMD processor) Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot |
| Onboard Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 60Hz12 Support HDCP 1.4 & 2.3 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16 GB |
| Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors Supports SATA 6Gb/s with Athlon with Radeon Vega Graphics processors Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek RTL8111H Gigabit LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| Back panel ports | LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Dimensions | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G |
| Chipset | A520 |
| Memory Speed | up to 4600+ |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Graphics Port | 1 x HDMI 2.1, 1x DVI-D |
| Expansion Slots | 1x PCIe 3.0 x16 slot (from AMD processor) Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot |
| Back Panel I/O Ports | LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Internal I/O Connector | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Vendor | MSI |
| Product Type | a520-motherboard |
| SKU | A520M-A-PRO |
There are no reviews yet. Be the first to review this product!

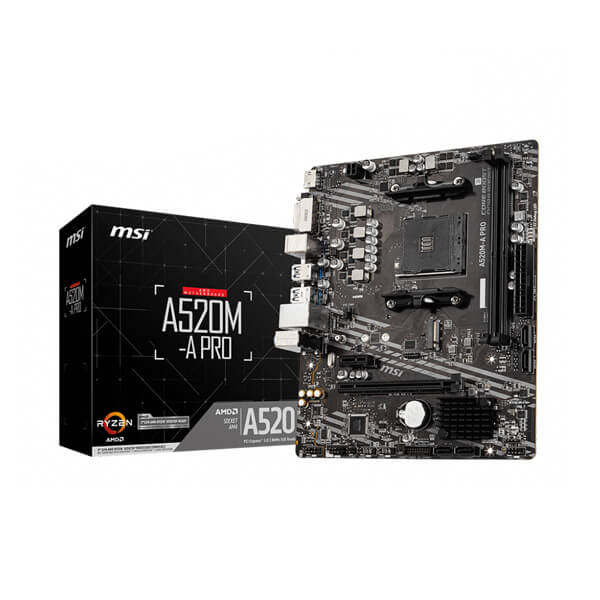

MSI A520M-A PRO Motherboard
Offer Price
Rs. 15,050.00
Delivery guaranteed as per standard government regulations.
