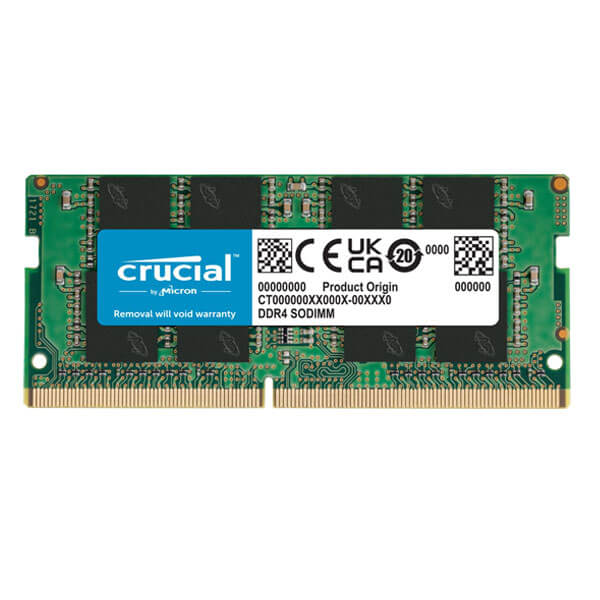

Features: | Power Supply: VDD = 1.2V Typical | VDDQ = 1.2V Typical | VPP = 2.5V Typical | VDDSPD = 2.2V to 3.6V | Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals | Low-power auto self refresh (LPASR) | Data bus inversion (DBI) for data bus | On-die VREFDQ generation and calibration | Dual-rank | On-board I2 serial presence-detect (SPD) EEPROM | 16 internal banks; 4 groups of 4 banks each | Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) | Selectable BC4 or BL8 on-the-fly (OTF) | Fly-by topology | Terminated control command and address bus | PCB: Height 1.18” (30.00mm) | RoHS Compliant and Halogen-Free | This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. | Specification: | Model | KVR32S22D8/16 | Capacity | 16GB | Speed | 3200Mhz | Memory Type | DDR4 | Form Factor | SODIMM | Latency | 22-22-22 | Voltage | 1.2V | CL(IDD) | 22 cycles | Row Cycle Time (tRCmin) | 45.75ns(min.) | Refresh to Active/Refresh | Command Time (tRFCmiin) | 350ns(min.) | Row Active Time (tRASmin) | 32ns(min.) | UL Rating | 94 V - 0 | Operating Temperature | 0°C to 85°C | Storage Temperature | -55°C to +100°C | Warranty | Limited Lifetime | Note | *** Features, Price, Specifications are subject to change without notice.
