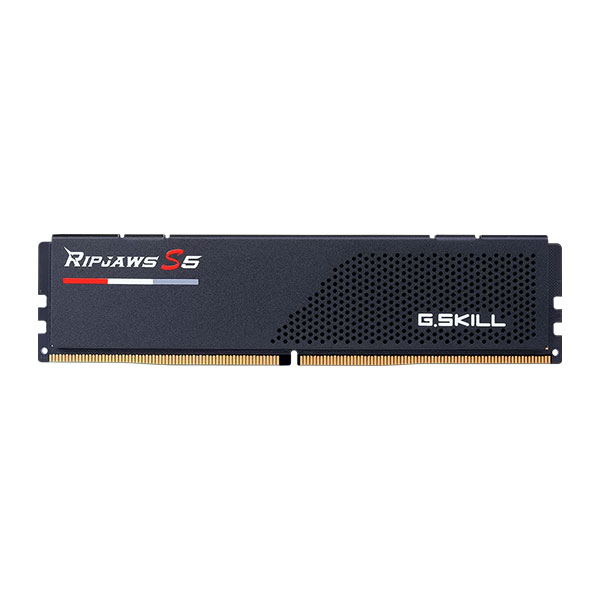

Features: | Power Supply: VDD = 1.1V Typical | VDDQ = 1.1V Typical | VPP = 1.8V Typical | VDDSPD = 1.8V to 2.0V | On-Die ECC | x80 ECC (x40, 2 independent I/O sub channels) | 32 internal banks | Hard/Soft Post Package Repair | Sideband access with I3C/I2C | PCB: Height 1.23” (31.25mm) | RoHS Compliant and Halogen-Free | Kingston's KSM56R46BD4-64MD is a 8G x 80-bit (64GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. | KSM56R46BD4-64MD | 64GB 2Rx4 8G x 80-Bit | PC5-5600 CL46 Registered EC8 288-Pin DIMM | Specifications: | CL(IDD): 46 cycles | Row Cycle Time (tRCmin): 48ns(min) | Refresh to Active/Refresh: 295ns(min) | Command Time (tRFCmin): 295ns(min) | Row Active Time (tRASmin): 32ns(min) | Row Precharge Time (tRPmin): 16ns(min) | UL Rating: 94 V - 0 | Operating Temperature: 0° C to +95° C | Storage Temperature: 55° C to +100° C
