Features
EK-CoolStream XE is a extreme-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.
EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream XE series radiators a perfect choice for any computer water cooled system.
 |
This radiator offers best cooling capacity in the 60mm thick radiator class: Triple stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.
This product features four recessed G1/4 threaded ports with two pre-installed extenders from the front side to allow any G1/4 threaded fitting to be used. From the back side the ports are closed with two G1/4 plugs. EK recommends EK-ACF series compression fittings.
Specifications
| Material | - Copper fins - 90% copper tubing (H90) - Brass chambers - Aluminum/Steel housing |
| Dimensions | 280 x 130 x 60mm (L x W x H) |
| Weight | 1.3kg |
| Liquid Capacity | 290ml |
| FPI | 18 |
| Port threads | 4x G1/4 |
| Fan compatibility | any standard size 120x120x25mm fan; UNC 6-32 thread tapping Pressure tested: 1bar(g) |
| Threads | G1/4 |
| Number of Fans | 2 |
| Package Contents | - EK-CoolStream XE series radiator /w two pre-installed G1/4 extenders - Flat-head UNC 6-32 screws (l=30mm) - Flat-head UNC 6-32 screws (l=5mm) - Allen key 2,5mm - Allen key 9mm - Allen key 6mm |
| Warranty | 2 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. |
 |
Specifications
| 1 | Discount Details |
|---|---|
| 2 | Eligible Transactions |
| 3 | Minimum transaction amount |
| 4 | Transactions allowed during the offer period |
| 5 | Applicable on EMI |
| Material | - Copper fins - 90% copper tubing (H90) - Brass chambers - Aluminum/Steel housing |
| Dimensions | 280 x 130 x 60mm (L x W x H) |
| Weight | 1.3kg |
| Liquid Capacity | 290ml |
| FPI | 18 |
| Port threads | 4x G1/4 |
| Fan compatibility | any standard size 120x120x25mm fan; UNC 6-32 thread tapping Pressure tested: 1bar(g) |
| Threads | G1/4 |
| Number of Fans | 2 |
| Package Contents | - EK-CoolStream XE series radiator /w two pre-installed G1/4 extenders - Flat-head UNC 6-32 screws (l=30mm) - Flat-head UNC 6-32 screws (l=5mm) - Allen key 2,5mm - Allen key 9mm - Allen key 6mm |
| Warranty | 2 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. |
| Vendor | EKWB |
| Product Type | Radiator |
| SKU | RAD-ek-coolstr |
There are no reviews yet. Be the first to review this product!

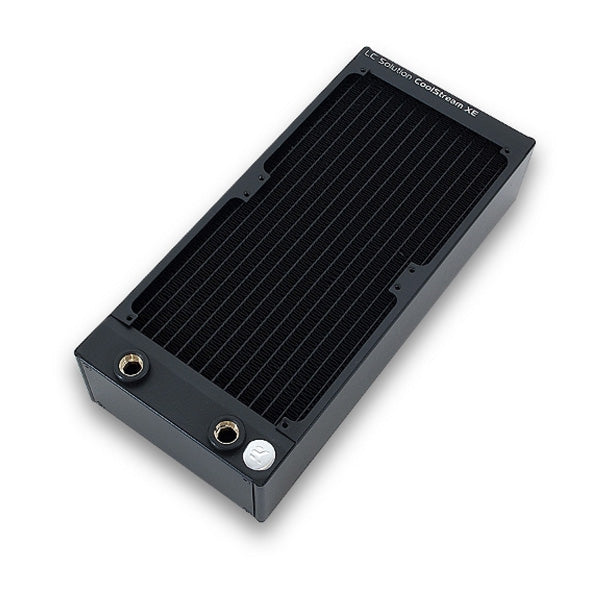

EK CoolStream XE 240 Dual Water Cooling Radiator
