Features:
EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK's unique CSQ design with the latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.
EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water-cooled system.
This radiator offers the best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.
This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.
Specifications:
| Technical details: |
Material:
|
| Radiator Dimensions: |
|
| Threads | G1/4 |
| Package Contents |
|
| Warranty | 2 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
PLEASE NOTE:
- When using fans other than standard 120x120x25mm size please use appropriately long screws!
- Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Specifications
| 1 | Discount Details |
|---|---|
| 2 | Eligible Transactions |
| 3 | Minimum transaction amount |
| 4 | Transactions allowed during the offer period |
| 5 | Applicable on EMI |
| Technical details: | Material: Copper fins 90% copper tubing (H90) Brass chambers Aluminum housing |
| Radiator Dimensions: | Dimensions: 160 x 130 x 40mm (L x W x H) Weight: 0.53kg Liquid Capacity: ~130mL FPI: 20 (split fin) Port threads: 2x G1/4 Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping Pressure tested: 1bar(g) |
| Threads | G1/4 |
| Package Contents | EK-CoolStream PE series radiator /w pre-installed G1/4 extenders flat-head UNC 6-32 screws (l=30mm) flat-head UNC 6-32 screws (l=5mm) |
| Warranty | 2 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
| Vendor | EKWB |
| Product Type | Radiator |
| SKU | RAD-ek-coolstr |
There are no reviews yet. Be the first to review this product!

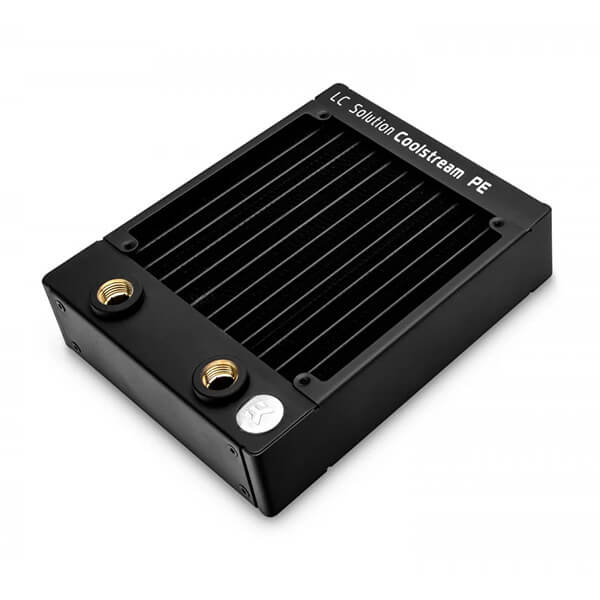

EK-CoolStream PE 120mm Water Cooling Radiator
