Features:
The PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Specifications
| Model | PL550D |
| P/N | R-PL550D-FC0B-IN-V2 |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Specifications
| 1 | All Categories |
|---|---|
| 2 | Total Savings Per Card across Mdcomputers.in platform |
| 1 | Offer Period |
| 2 | Eligible Transactions |
| 3 | Minimum transaction amount |
| 4 | Transactions allowed during the offer period |
| 5 | Applicable on EMI |
| 1 | Discount Details |
| Model | PL550D |
| P/N | R-PL550D-FC0B-IN-V2 |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Wattage | 550 Watt |
| Series | PL-D SERIES |
| Certification | 80 Plus Bronze |
| Modular | NON MODULAR |
| PCIe Connector (6+2) | 1 |
| SATA Connector | 2 |
| Peripheral (4-Pin) | 2 |
| Note*** | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
| Vendor | DEEPCOOL |
| Product Type | deepcool-smps |
| SKU | PL550D |
There are no reviews yet. Be the first to review this product!

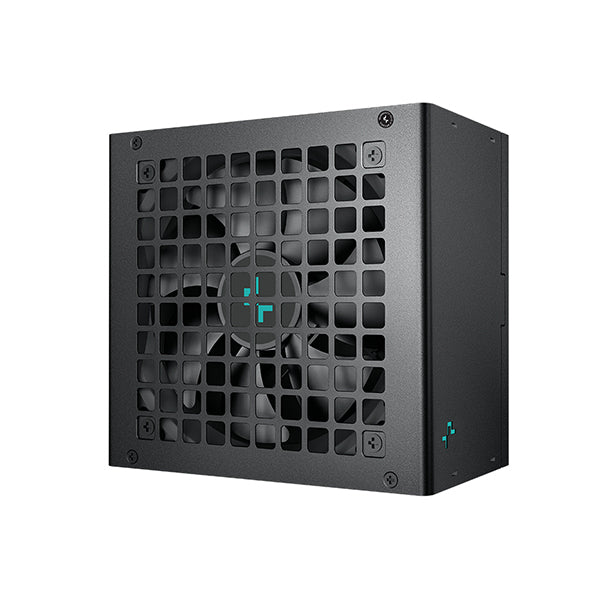

DeepCool PL550D Bronze 550W ATX 3.1 SMPS
