COLORFUL BATTLE-AX B450M-T M.2 V14
Features:
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Provide 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces
- Provide 4 USB 2.0 interfaces
- Equipped with RTL8111H gigabit wired network card
- Provide HDMI+VGA display interface
- Six major protective technologies for more stable product operation
- Strict testing of 200 processes ensures quality assurance
- PCB atomization process fully upgraded
SATA Ports
- 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces
- - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)
Power Management
- Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor
- CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN
- RTL8111H Gigabit Ethernet Card
Audio
- Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels
Specifications
| 1 | All Categories |
|---|---|
| 2 | Total Savings Per Card across Mdcomputers.in platform |
| 1 | Offer Period |
| 2 | Eligible Transactions |
| 3 | Minimum transaction amount |
| 4 | Transactions allowed during the offer period |
| 5 | Applicable on EMI |
| 1 | Discount Details |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G |
| Chipset | B450 |
| Memory Speed | up to 3600 |
| Max Memory Support | 64 GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology (* Please visit the official website of Colorful at www.colorful. cn for the latest memory compatibility list) |
| Expansion Slots | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
| Back Panel I/O Ports | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution 1×VGA interface 1×PS/2 interface 1×Gigabit network interface 3×Audio interfaces (audio input/output/microphone) |
| Internal I/O Connector | 1×CPU fan pin 1×System fan pin 2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces 1×Front audio pin 1×Front panel pin 1×Speaker pin 1×COM port pin 1×Clear CMOS jumper 1×Debug light pin |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Vendor | COLORFUL |
| Product Type | amd-chipset-motherboard |
| SKU | BA-B450M-T-M-2-V14 |
There are no reviews yet. Be the first to review this product!

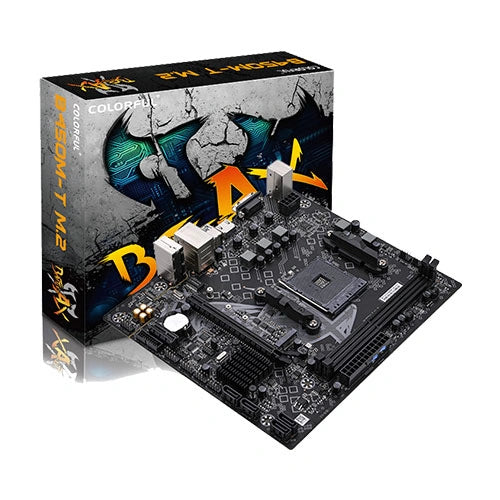

Colorful Battle-AX B450M-T M.2 V14 M-ATX Motherboard
