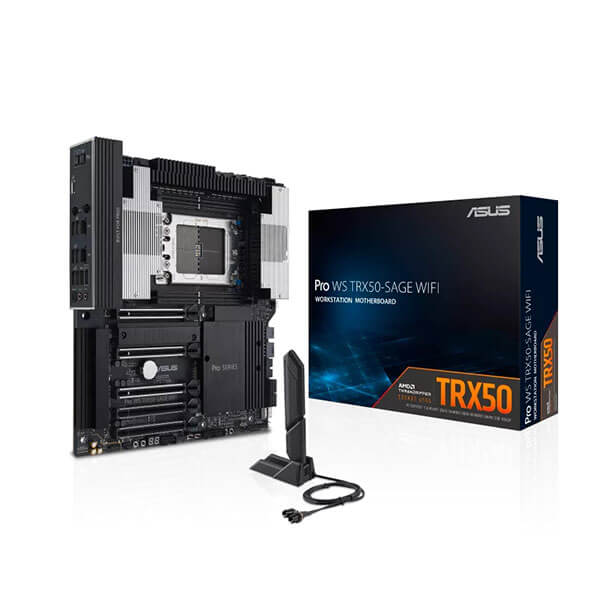

Features: | AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support | AMD sTR5 socket supports up to 96-core CPUs: | Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors. | CPU and memory overclocking: | Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC) | Robust power and thermal design: | 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad. | Ultrafast connectivity: | three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support. | Server-grade IPMI remote management: | hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management | Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation | Specifications: | Model | Pro WS TRX50-SAGE WIFI | CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors | Chipset | AMD TRX50 Chipset | Memory | 4 x DIMM slots, DDR5, ECC Registered Memory* | 4 Channel Memory Architecture | * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site | Expansion Slots | AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors | 2 x PCIe 5.0 x16 slots | 1 x PCIe 5.0 x16 slot(x8 mode) | 1 x PCIe 4.0 x16 slot | 1 x PCIe 4.0 x16 slot(x4 mode) | * Please check the PCIe bifurcation table on the support site | Storage | Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset | M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) | 4 x SATA 6Gb/s ports | 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. | Ethernet | 1 x Marvell® AQtion 10Gb Ethernet | 1 x Intel® I226-LM 2.5Gb Ethernet | Wireless & Bluetooth | Wi-Fi 7* | 2x2 Wi-Fi 7 (802.11be)** | Supports 2.4/5/6GHz frequency band*** | Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. | Bluetooth® v5.4**** | * Compatible with Windows 11 or later. | ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. | *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | USB | Rear USB (Total 9 ports) | 1 x USB 20Gbps port (1 x USB Type-C®) | 6 x USB 10Gbps ports (6 x Type-A ) | 2 x USB 2.0 ports (2 x Type-A ) | Front USB (Total 7 ports) | 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+) | 1 x USB 5Gbps header supports 2 additional USB 5G ports | 2 x USB 2.0 headers support additional 4 USB 2.0 ports | Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* | - Impedance sense for front and rear headphone outputs | - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | - Supports up to 32-Bit/192 kHz playback | Back Panel I/O Ports | 6 x USB 10Gbps ports (6 x Type-A) | 2 x USB 2.0 port (2 x Type-A) | 1 x Wi-Fi Module | 1 x Marvell® AQtion 10Gb Ethernet port | 1 x Intel® 2.5Gb Ethernet port | 2 x Audio jacks | 1 x Optical S/PDIF out port | 1 x BIOS FlashBack™ button | 1 x Clear CMOS button | Internal I/O Connectors | Fan and Cooling related | 1 x 4-pin CPU Fan header | 1 x 4-pin CPU OPT Fan header | 1 x W_PUMP+ header | 4 x 4-pin Chassis Fan headers | 2 x 4-pin VRM Fan header (with VRM FAN onboard) | Power related | 2 x 24-pin Main Power connectors | 2 x 8-pin +12V Power connectors | 2 x 8-pin PCIe to CPU power connectors | 1 x 6-pin PCIe Power connector | 1 x 8-pin PCIe Power connector | Storage related | 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports | 1 x SlimSAS port | 1 x USB 20Gbps connector supports USB Type-C® | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | Miscellaneous | 1 x BMC header1 x COM Port header | 1 x USB4 header1 x FlexKey button | 1 x Front panel audio header (F_AUDIO) | 1 x Start button | 1 x Safe boot button | 1 x ReTry button1 x LN2 mode jumper | 1 x Slow mode switch | 1 x SPI TPM header (14-1pin) | 1 x 10-1 pin system panel header | 1 x Chassis intrusion header | 1 x Thermal Sensor header | Special Features | ASUS Q-Design | - Q-Code | - M.2 Q-Latch | - Q-Connector | - Q-DIMM | - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | - Q-Slot | ASUS Thermal Solution | - M.2 heatsink and onboard thermal pads | - VRM heatsink design with active fans | ASUS EZ DIY | - BIOS FlashBack™ button | - BIOS FlashBack™ LED | - Clear CMOS button | - ProCool II | - Pre-mounted I/O shield | - SafeSlot | - SafeDIMMBespoke | Motherboard Design & Business Focused Features | - 24/7 Reliability | - Overcurrent Protection | Software Features | ASUS Exclusive Software | Armoury Crate- Fan Xpert 4 | ASUS CPU-Z | IT Management software supported | - ASUS Control Center Express(ACCE) | Adobe Creative Cloud (Free Trial) | Norton 360 Deluxe (60 Days Free Trial) | WinRAR (40 Days Free Trial) | UEFI BIOS | - ASUS CrashFree BIOS 3 | - ASUSTeK. EzFlash UtilityFlexKey | BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | Manageability | WOL by PME, PXE (UEFI mode) | Accessories | Cables | 2 x SATA 6Gb/s cables | 1 x CPU 8-pin to PCIe 8-pin adapter cable package | 1 x Thermistor cable pack | 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas | 1 x M.2 Q-Latch package(2 in 1) | 2 x M.2 Rubber Packages | 1 x Q-connector Documentation | 1 x ACC Express Activation Key Card | 1 x QSG | Operating System | Windows® 11 64-bit | Form Factor | CEB Form Factor | 12 inch x 11 inch | (30.5 cm x 28.0 cm) | Warranty | 3 Years | Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
