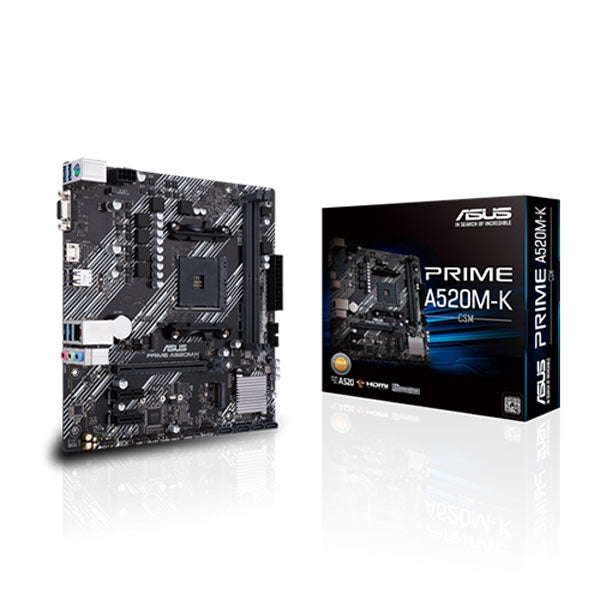

Asus Prime A520M-K/CSM M-ATX Motherboard

Features:

ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

  • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection

Specifications:

Model PRIME A520M-K/CSM
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset AMD A520
Memory

2 x DIMM, Max. 64GB, DDR4

4866(O.C)/4600(O.C)/4466(O.C.)/

4400(O.C)/4333(O.C.)/4266(O.C.)

/4200(O.C.)/4133(O.C.)/4000(O.C.)

/3866(O.C.)/3733(O.C.)/3600(O.C.)/

3466(O.C.)/3400(O.C.)/3333(O.C.)/

3200/3000/2933/2800/2666/2400/

2133 MHz Un-buffered Memory

Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x D-Sub
1 x HDMI 2.1(4K@60HZ)
Expansion Slots

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1
Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD A520 Chipset :

4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio


Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

  • Audio Shielding
    Dedicated audio PCB layers
USB Ports Rear USB Port ( Total 6 )
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector
Accessories User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Warranty 3 Years
Note

Features, Price, Specifications are subject to change without notice.

Images used for representation purpose only

Specifications

1 All Categories
2 Total Savings Per Card across Mdcomputers.in platform
1 Offer Period
2 Eligible Transactions
3 Minimum transaction amount
4 Transactions allowed during the offer period
5 Applicable on EMI
1 Discount Details
Model PRIME A520M-K/CSM
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset AMD A520
Memory 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/ 4400(O.C)/4333(O.C.)/4266(O.C.) /4200(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3200/3000/2933/2800/2666/2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x D-Sub 1 x HDMI 2.1(4K@60HZ)
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1
Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : Audio Shielding Dedicated audio PCB layers
USB Ports Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Accessories User´s manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Warranty 3 Years
Note Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
Platform AMD
Socket AM4
Cpu Type Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G
Chipset A520
Memory Speed up to 4866
Max Memory Support 64 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature Un-buffered Memory Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU
Graphics Port 1 x HDMI 2.1
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors AMD A520 Chipset 2 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode)
Back Panel I/O Ports 4 x USB 3.2 Gen 1 (blue) Type-A 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Connector 1 x COM port header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Form Factor Micro-ATX
Note Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
Vendor ASUS
Product Type a520-motherboard
SKU PRIME A520M-K/CSM
